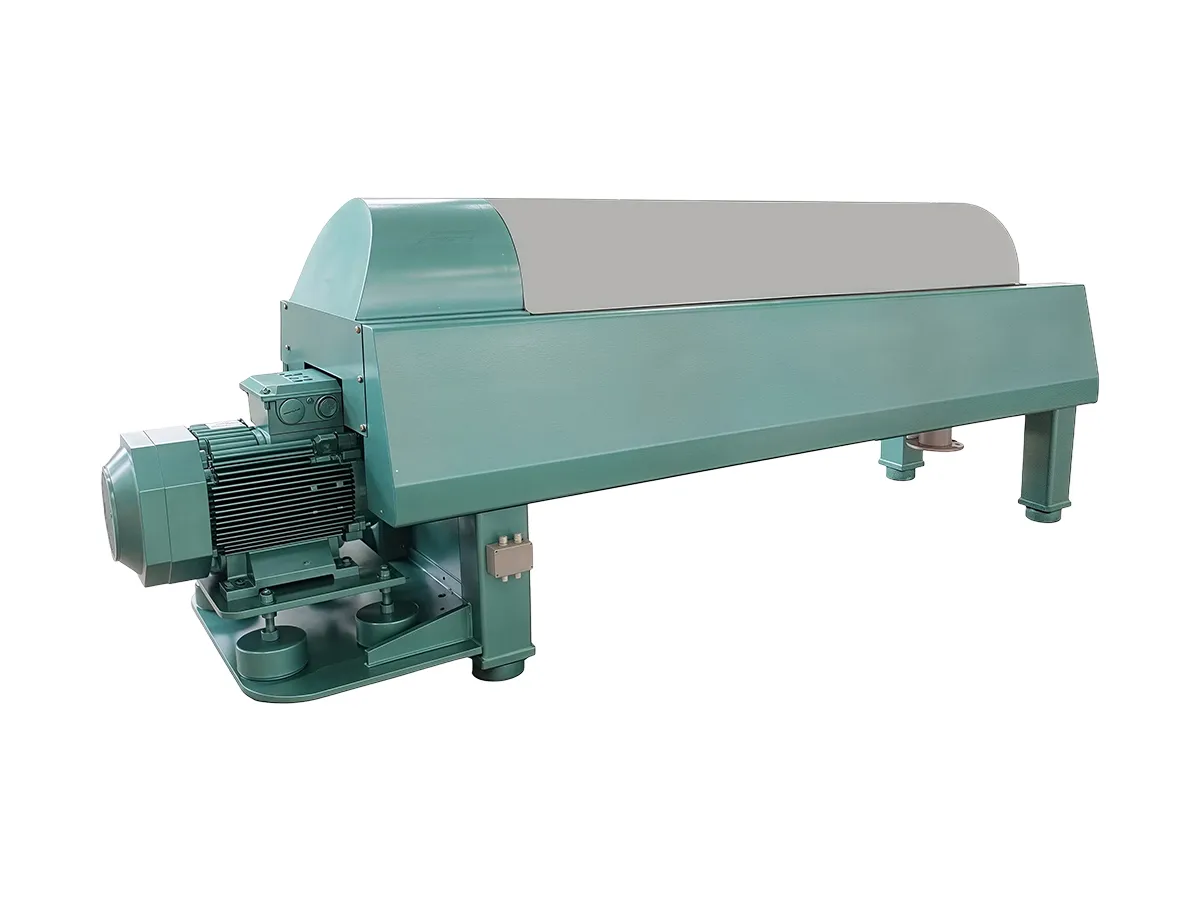

Three-Phase Decanter, Separation Decanter
The three-phase decanter is a centrifugal force-driven solid-liquid separation machine that achieves solid-liquid-liquid three-phase separation. It is primarily composed of the drive assembly, differential (gearbox), scroll conveyor, drum, feed pipe, cover, base, and control system.
| Model | |
| Bowl Diameter (mm) | 360 |
| Length-to-Diameter Ratio | 4.19 |
| Cone Half-Angle | 8.5° |
| Scroll Pitch (mm) | 112 |
| Max. Speed (rpm) | 4,200 |
| Differential Speed (rpm) | 3~15 |
| RCF (relative centrifugal force) | 3,556 |
| Capacity (m3/h) | 6-10 |
| Motor Power (kW) | Main: 22/Secondary: 7.5 |
| Machine Weight (kg) | 3,200 |
| Overall Dimensions (L*W*H, mm) | 3,333x1,108x1,220 |
- Chemicals
Three-phase separation of oily sludge, residual oil, coal tar, and other oil-water-solid mixtures.
- Food and Beverage
The process of separating the oil phase, water phase, and solid impurities in the production of animal lipids, vegetable oils, and similar products.
- Environmental and Resource Recovery
The separation and recovery of oily effluent, oily sludge, and other materials that contain solid particles, a water phase, and an oil phase.

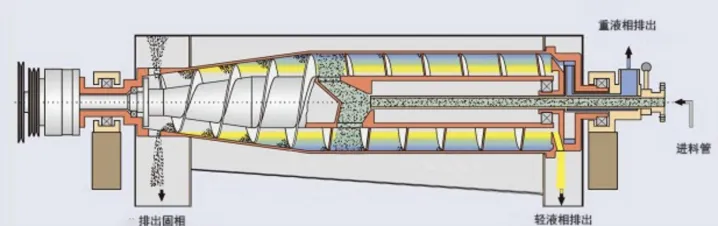

The feed pipe is the pathway through which the material to be separated enters the cylinder. The acceleration cone accelerates it to speed, and it enters the separation zone between the cylindrical section of the drum and the scroll conveyor under the strong centrifugal field. The denser solid phase is propelled toward the drum wall, accumulates in the sediment zone, and is transported out of the machine by the scroll conveyor. The axial force component in the conical section propels the lighter liquid phase toward the light-phase outlet after it is displaced by the heavy phase and propelled to the surface of the settling pond. The liquid then forms an inner liquid ring that consists of a heavy liquid (usually water) and a light liquid (usually oil). These liquids discharge separately at the large end of the drum and converge freely before flowing out of the machine.
